PISTON AIR COMPRESSORS

PISTON AIR COMPRESSORS

PISTON AIR COMPRESSOR OIL FREE PISTON AIR COMPRESSORS

Oil-free piston air compressors deliver clean, reliable compressed air without the risk of oil contamination. Ideal for medical, dental, food processing, laboratories and electronics industries, these compressors ensure high performance with low maintenance while delivering pure compressed air.

Page Title

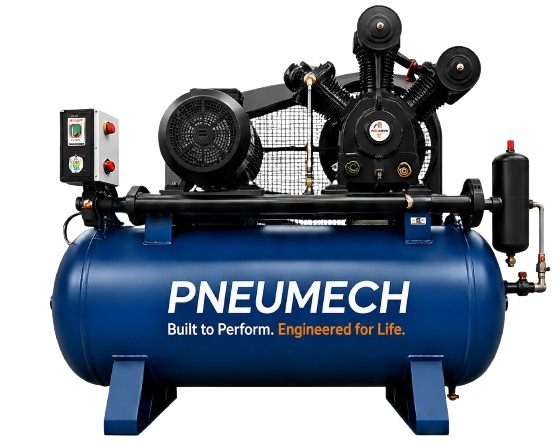

Piston Air Compressor

KEY PRODUCT FEATURES

  • Low RPM pump
  • Suction filter safety protection system
  • Intercooler and after cooler with steel cooler
  • Easy to maintain and repair
  • Low oil carry over (Low oil consumption)
  • Splash oil / Forced lubrication
  • Easy to start
  • Simple in design
  • Easy oil drain

BENEFITS

  • Maximum life and minimum maintenance
  • No intake of improper vapors
  • High efficiency
  • Consistent high pressure air
  • Minimum wear and tear
  • Better life of moving parts
  • Low maintenance
  • Sustainable performance
  • Trouble-free service

SINGLE AND TWO STAGE OIL-LUBRICATED RECIPROCATING COMPRESSOR

Robust, durable and engineered for long-lasting performance, PNEUMECH reciprocating air compressors are designed for continuous operation with low maintenance requirements to meet your compressed air needs efficiently.

CORE VALUES THAT BENEFITS THE CUSTOMER

Cost Effective

Reliable performance with low maintenance and minimum life cycle cost.

Operator Safety

Advanced safety controls and protection systems ensure reliable operation.

Energy Efficient

Optimized compressor design delivers lower power consumption.

High Reliability

Premium quality components ensure consistent compressed air performance.

TECHNICAL SPECIFICATION

Model Power
(kW / HP)		 Bore × Stroke
(mm)		 No. of
Cylinder		 Speed
(RPM)		 Compressor Delivery (LPM) No. of
Piston Rings		 Litres Receiver Dimension
(L×W×H) mm		 Net Weight
(Kg)
8 Bar 11 Bar
Single Stage (Maximum Pressure Range : 8 – 13.5 Bar)
PMTS 5200 3.7 / 5 65 × 45 2 920 400 310 2 120 760×450×950 116
PMTS 6200 4 / 5.5 65 × 55 2 880 500 390 2 120 760×450×950 125
PMTS 7200 5.5 / 7.5 75 × 55 2 880 650 520 2 120 760×450×950 140
PMTS 8200 7.5 / 10 75 × 65 2 880 800 650 2 120 760×450×950 180
PMTS 10300 11 / 15 100 × 65 2 860 1050 820 2 120 760×450×950 216
PMTS 12300 11 / 15 100 × 80 2 860 1300 1050 2 120 760×450×950 234
Model Power
(kW / HP)		 Bore × Stroke
(mm)		 No. of
Cylinder		 Speed
(RPM)		 Compressor Delivery (LPM) No. of
Piston Rings		 Litres Receiver Dimension
(L×W×H) mm		 Net Weight
(Kg)
8 Bar 11 Bar
Two Stage (Pressure Range : 12.5 kg/cm² or 175 psi)
PMTS 15300 11 / 15 100 × 65 2 880 900 750 4 200 / 250 1090×490×1260 226
PMTS 20300 15 / 20 100 × 80 2 880 1200 950 4 200 / 250 1090×490×1260 240
PMTS 25400 18.5 / 25 120 × 80 2 760 1500 1200 4 200 / 250 1090×490×1260 280
PMTS 30400 22 / 30 120 × 90 2 760 1750 1400 4 200 / 250 1090×490×1260 325
PMTS 40400 30 / 40 130 × 90 2 760 2200 1750 4 200 / 250 1090×490×1260 401
Free Air Delivery measured as per IS:5456 & working pressure for all models at 8 kg/cm² and for TS models at 12.5 kg/cm².
Available in Base Mounted and Tank Mounted versions.
Note: As continuous engineering improvements are made, technical specifications are subject to change without prior notice.
